Channel Spring Nuts
We provide a vast collection of extremely sturdy Spring Channel Nuts that is exactly intended to give outstanding handling power. Simple to fit, our Steel Channel Nuts are exceedingly sturdy and consistent and are made in the premium superiority from Stainless Steel. Customers can get it at most reasonable costs. These nuts are cold pushed, spouted so that their teeth will offer a “BITING” act into the in twisted rims of channel parts. The nut bodies are intended with beveled finish which bolts into location by contact with inner side barriers of channel when twisted at 90 degree. The channel nuts are as well accessible in SS304 and SS316 marks in brilliant end.
Material: The channel nuts are cold pressed, tapped so that their teeth will provide a “BITING” action into the in turned edges of channel sections. The nut bodies are designed with beveled end which lock into position by contact with interior side walls of channel when turned at 90 degree.
The channel nuts are also available in SS304 and SS316 grades in bright finish
Finishes available:
- Zinc plated
- Yellow passivation
- Hot dip galvanized
Case hardened channel nuts are also available.
Our products are produced as per the requirements of BS6946.
Technical Specifications

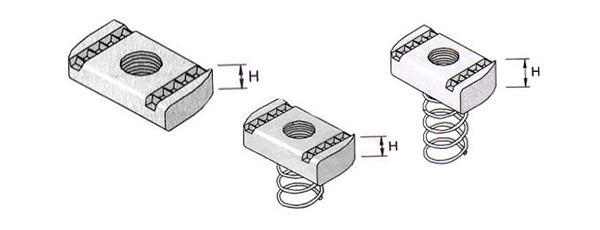

LONG SPRING CHANNEL NUT
| Part No. | Size (MM) X (H) | Part No. | Size (Inch) X (H) |
| A001 | M6 X 6 MM | A251 | 1/4" x 1/4" |
| A002 | M8 X 6 MM | A252 | 5/16" x 5/16" |
| A003 | M10 X 8 MM | A253 | 5/16" x 3/8" |
| A004 | M12 X 8 MM | A254 | 3/8" x 3/8" |
| A303 | 1/2" x 3/8" | ||
| A060 | M12 X 10 MM | A255 | 1/2" x 1/2" |
| A061 | M16 X 12 MM | A256 | 5/8 to 7/8" x 3/8" |
| A257 | 5/8 to 7/8" x 7/16" | ||
| A258 | 5/8 to 7/8" x 1/2" |
SHORT/ CONICAL SPRING CHANNEL NUT
| Part No. | Size (MM) X (H) | Part No. | Size (Inch) X (H) |
| A005 | M6 X 6 MM | A259 | 1/4" x 1/4" |
| A006 | M8 X 6 MM | A260 | 5/16" x 5/16" |
| A007 | M10 X 8 MM | A261 | 5/16" x 3/8" |
| A008 | M12 X 8 MM | A262 | 3/8" x 3/8" |
| A059 | M12 X 10 MM | A263 | 1/2" x 1/2" |
| A304 | 1/2" x 3/8" |
Premium Spring Nuts Collection – Engineered Strength by Ashish International
At Ashish International, our expertly engineered spring nuts stand as a cornerstone in the world of industrial fastening. Designed to lock securely into channels and provide consistent torque and grip, spring nuts are essential in electrical, construction, and heavy machinery applications. As a global exporter of precision metal components, we bring you a comprehensive line of spring nuts, ranging from spring nut bolts to channel nuts with spring assemblies—all tailored for high-performance utility and reliability.
Backed by decades of manufacturing excellence and adherence to international standards such as BS6946, our spring nuts are made with high-grade stainless steel and are finished with durable coatings like zinc plating, yellow passivation, and hot-dip galvanization. Whether you’re a distributor, contractor, or OEM, our spring nut solutions deliver unmatched holding power and ease of use, empowering your infrastructure.
Why Choose Ashish International’s Spring Nuts?
As highlighted, Ashish International has built a legacy on uncompromised quality and global reach. Our spring nuts reflect that legacy—designed to perform even in the most challenging environments.
1. Superior Material Selection
Our spring nuts are available in corrosion-resistant SS304 and SS316 stainless steel, offering long-term resilience against rust and harsh environmental conditions. For added mechanical strength, we also offer case-hardened variants
2. Biting Action for Enhanced Grip
Each spring nut is cold-pressed and tapped with specifically designed teeth that provide a “biting” action into the channel’s in-turned edges. This feature ensures maximum hold strength, making them suitable for both light-duty and high-load applications.
3. Smooth Installation, Secure Locking
The beveled nut bodies are engineered to lock into position upon a simple 90-degree twist—reducing installation time while increasing stability and security.
4. Versatility of Use
From electrical panel framing to HVAC systems and solar installations, our spring nut bolt assemblies and spring channel nuts are trusted across industries for their adaptability and dependability.
Comprehensive Spring Nut Variants
We don’t believe in one-size-fits-all. At Ashish International, our product line is crafted to meet specific user needs. Below is a deep dive into the variants we provide:
Spring Nut Bolt AssembliesThe spring nut bolt combination is a ready-to-install solution that includes a pre-mated bolt with a matching spring nut. Ideal for quick, consistent fastening in support channels, these assemblies save time and reduce risk during installation.
- Available in multiple thread sizes (M6, M8, M10, etc.)
- Custom bolt lengths and head types (hex, flange, etc.)
- High tensile strength
- Coatings available: Zinc plated, Hot-dip galvanized
Channel Nut with Spring
Often used in strut channels or framing systems, the channel nut with spring is an essential fixture for mounting pipes, electrical cables, and mechanical components.
- Spring element ensures positioning within the channel
- Minimizes movement during installation
- Ideal for overhead or vertical assembly applications
- Options in single and double spring configurations
Nut with Spring Washer
This variant features an integrated spring washer beneath the nut, offering additional resistance against vibrations and loosening. It’s perfect for dynamic or load-bearing environments.
- Enhances locking capability
- Minimizes need for re-torque
- Optional in carbon steel and stainless steel
Spring Channel Nut
Our spring channel nuts are meticulously engineered to deliver smooth handling with exceptional retention. They are primarily used in slotted channel frameworks to create secure joints without welding or additional support.
- Cold-formed and machined for dimensional precision
- Designed for universal compatibility with industry-standard channels
- Manufactured in compliance with BS6946 standards
Finishing Options: Surface Protection that Lasts
We understand the significance of longevity and aesthetic finish. All our spring nuts are available in multiple surface finishes to cater to different environmental and application needs:
- Zinc Plated: For general indoor use
- Yellow Passivation: Enhanced corrosion resistance and visual inspection
- Hot Dip Galvanized: Ideal for outdoor and marine environments
- Bright Stainless Steel Finish: For superior resistance and appearance
Application Industries
Our spring nuts, including the popular channel nut with spring and spring nut bolt variants, are widely used in:
- Construction & Infrastructure: Framing, conduit support, and HVAC systems
- Electrical Installations: Cable management, panel framing
- Automotive & Heavy Machinery: Securing engine mounts and brackets
- Renewable Energy: Mounting solar panels and wind turbines
- Telecommunication Towers: Bracket assembly and antenna mounts
Each nut design is rigorously tested for fit, tolerance, and holding power—ensuring it exceeds performance expectations.
Key Advantages of Choosing Our Spring Nuts
- 100% inspection before shipment
- Compliance with international mechanical and corrosion standards
- Flexible order volumes—small batches to container loads
- High repeatability for automated installations
- Technical support and post-sale assistance
From spring channel nut assemblies to high-strength nut with spring washer designs, we engineer every piece to integrate seamlessly into your assembly line or project site.
Custom Manufacturing & Export Support
Whether you’re sourcing in bulk or need custom specifications, Ashish International provides:
- Custom manufacturing based on client drawings
- Private labeling for OEMs
- Worldwide shipping and logistics management
- Multilingual documentation and certification support
As a global exporter, we’ve served clients across Europe, the Middle East, Africa, and Southeast Asia. Our clients trust us for timely delivery, superior quality, and scalable production capacity.
Partner With Ashish International
We’re more than just manufacturers—we’re your long-term partners in structural integrity. At Ashish International, we fuse craftsmanship with cutting-edge technology to provide the most robust, efficient, and affordable spring nut solutions in the industry.
Explore our full product catalog or send us your technical drawings, and let our expert team deliver the ideal fastening solution for your needs.
